MCQ on Current Electricity

1. What does the internal resistance of a cell mean?
(a) The resistance of the material used in the cell
(b) The vessel of the cell
(c) The electrodes of the cell
(d) The electrolyte used in the cell

Answer

Answer: (d) The electrolyte used in the cell


2. A potentiometer is considered a versatile and accurate device to make an electrical measurement of EMF. Why?
(a) Because the method involves a combination
(b) There are cells involved
(c) Because of potential gradients
(d) As there is no flow of current through the galvanometer

Answer

Answer: (d) As there is no flow of current through the galvanometer


3. Consider copper and aluminium wire whose length and resistance are the same. Also, the specific resistance of aluminium is more than copper. Select the correct statement
(a) Copper and aluminium mass are the same
(b) Copper wire has more mass than the aluminium wire
(c) Copper wire has less mass than the aluminium wire
(d) The information given is incomplete

Answer

Answer: (d) The information given is incomplete


4. Following is the graph which represents the thermo EMF of two different metals which are joined end to end. One end of the metal is kept at a constant temperature while the other end is heated at very high temperature.
Current Electricity MCQ for NEET 1

Answer

Answer: (d)


5. Select the graph which depicts the variation in thermoelectric power and the temperature difference between the hot and cold junction in the thermocouples
Current Electricity MCQ for NEET 2

Answer

Answer: (a)


6. Which of the following represents the relationship between the current flowing, i through the electric heater and the time taken, t.
Current Electricity MCQ for NEET 3

Answer

Answer: (b)


7. Consider three voltmeters A, B, and C with resistance R, 1.5R, and 3R respectively. Potential difference is applied across the points X and Y, the voltmeter readings are VA, VB, and VC.
Current Electricity MCQ for NEET 4
(a) VA = V≠ VC
(b) VA ≠ V≠ VC
(c) VA = V= VC
(d) VA ≠ V= VC

Answer

Answer: (c) VA = V= VC


8. What is the ratio of power dissipated if two electric bulbs are connected in series and the ratio of their resistance is 1:2?
(a) 1:4
(b) 1:2
(c) 2:1
(d) 1: 1

Answer

Answer: (b) 1:2

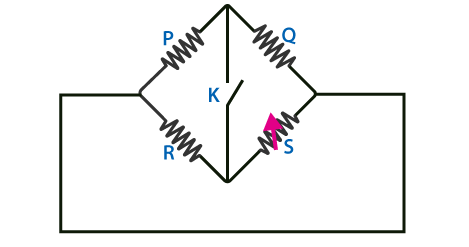

9. Following is the Wheatstone bridge in which \(\frac{P}{Q}=\frac{R}{S}\). Let K be the key which is closed, so what will be the deflection shown by galvanometer?
Current Electricity MCQ for NEET 5
(a) The deflection happens in either side
(b) There is no deflection
(c) Deflection happens on the right side
(d) Deflection happens on the left side

Answer

Answer: (a) The deflection happens in either side


10. What is the principle behind thermocouple
(a) Joule effect
(b) Thomson effect
(c) Seebeck effect
(d) Peltier effect

Answer

Answer: (c) Seebeck effect


11. According to Faraday’s laws of electrolysis, to which of the following is the amount of decomposition proportional to?
Current Electricity MCQ for NEET 6

Answer

Answer: (a) The electrochemical equivalent of the substance
