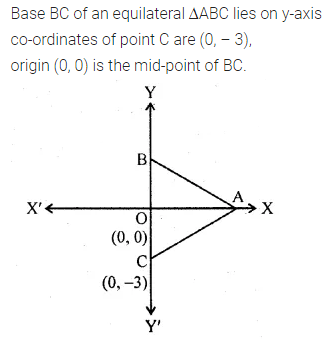

Question 1.
The base BC of an equilateral triangle ABC lies on y-axis. The coordinates of point C are (0, -3). If the origin is the mid-point of the base BC, find the coordinates of the points A and B
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 1
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 2

Question 2.
A and B have co-ordinates (4, 3) and (0, 1), Find
(i) the image A’ of A under reflection in the y-axis.
(ii) the image of B’ of B under reflection in the line AA’.
(iii) the length of A’B’.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 4

Question 3.
Find the co-ordinates of the point that divides the line segment joining the points P (5, -2) and Q (9, 6) internally in the ratio of 3 : 1.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 5

Question 4.
Find the coordinates of the point P which is three-fourths of the way from A (3, 1) to B (-2, 5).
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 6

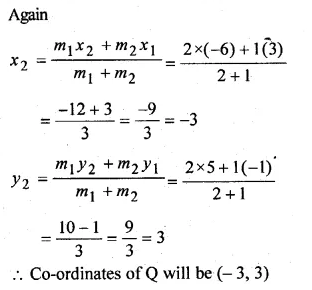

Question 5.

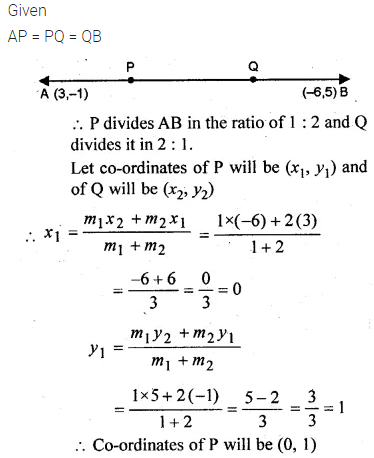

P and Q are the points on the line segment joining the points A (3, -1) and B (-6, 5) such that AP = PQ = QB. Find the co-ordinates of P and Q.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 7
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 8

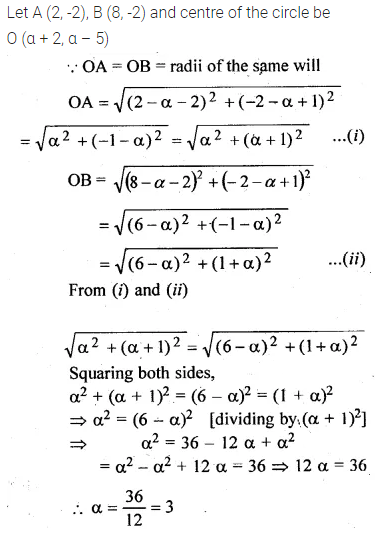

Question 6.
The centre of a circle is (α + 2, α – 5). Find the value of a given that the circle passes through the points (2, -2) and (8, -2).
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 9

Question 7.

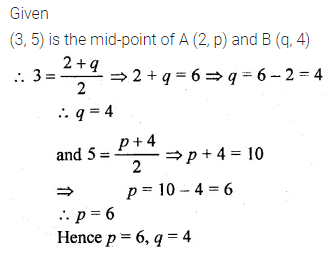

The mid-point of the line joining A (2, p) and B (q, 4) is (3, 5). Calculate the numerical values of p and q.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 10

Question 8.

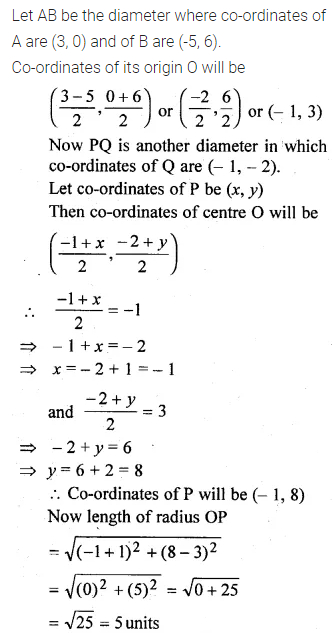

The ends of a diameter of a circle have the co-ordinates (3, 0) and (-5, 6). PQ is another diameter where Q has the coordinates ( -1, -2). Find the co-ordinates of P and the radius of the circle.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 11

Question 9.

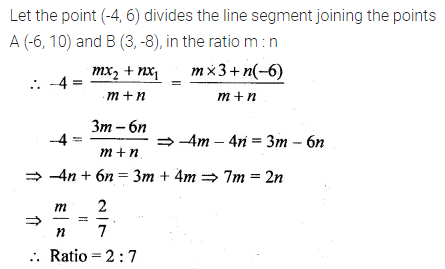

In what ratio does the point (-4, 6) divide the line segment joining the points A(-6, 10) and B (3, -8)?
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 12

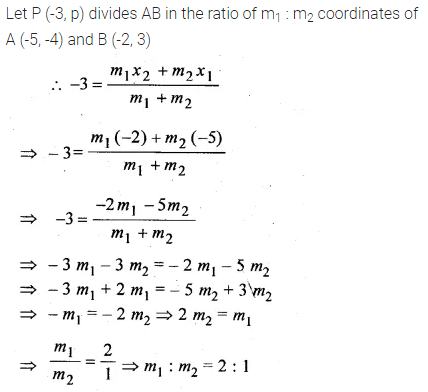

Question 10.
Find the ratio in which the point P (-3, p) divides the line segment joining the points (-5, -4) and (-2, 3). Hence find the value of p.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 13
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 14

Question 11.

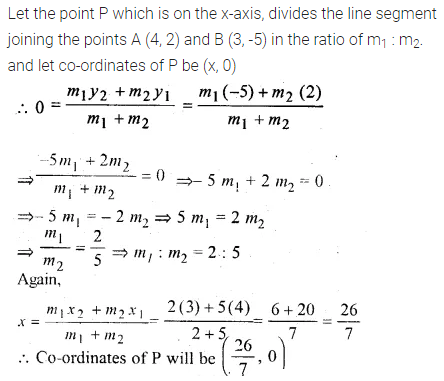

In what ratio is the line joining the points (4, 2) and (3, -5) divided by the x-axis? Also, find the co-ordinates of the point of division.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 15

Question 12.

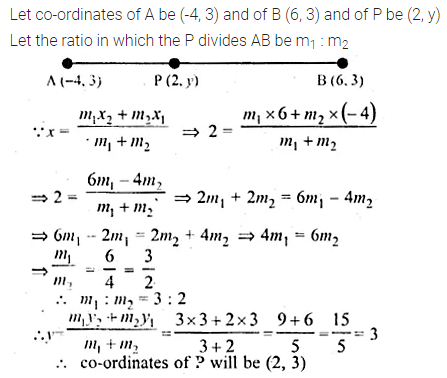

If the abscissa of a point P is 2, find the ratio in which it divides the line segment joining the points (-4, -3) and (6, 3). Hence, find the co-ordinates of P.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 16

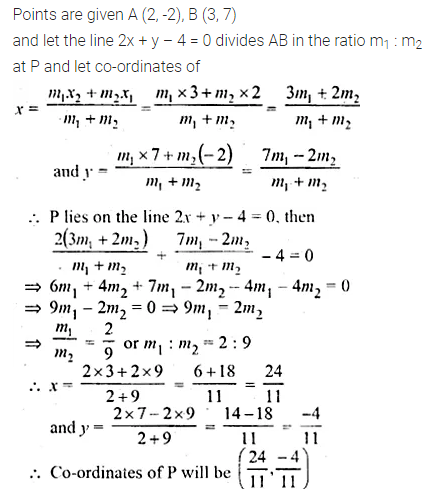

Question 13.
Determine the ratio in which the line 2x + y – 4 = 0 divide the line segment joining the points A (2, -2) and B (3, 7). Also, find the co-ordinates of the point of division.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 17

Question 14.

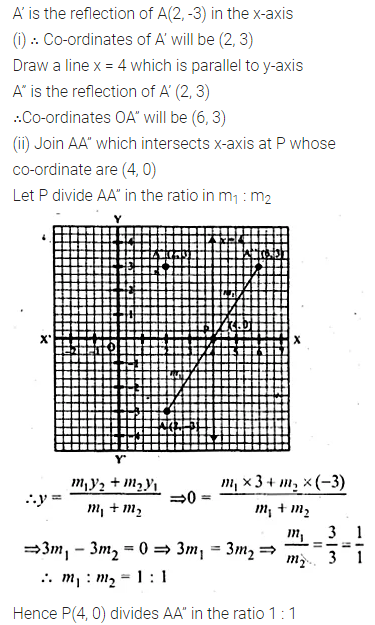

Point A(2, -3) is reflected in the v-axis onto point A’. Then the point A’ is reflected in the line x = 4 onto the point A”.
(i) Write the coordinates of A’ and A”.
(ii) Find the ratio in which the line segment AA” is divided by the x-axis. Also, find the coordinates of the point of division.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 18

Question 15.

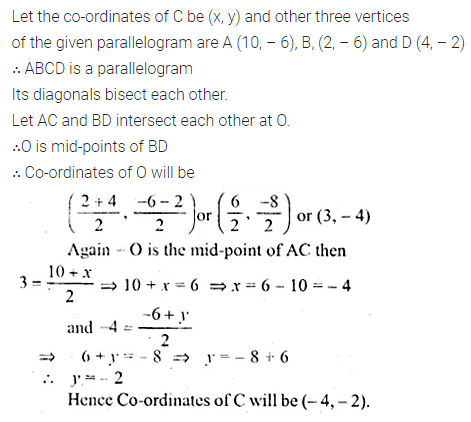

ABCD is a parallelogram. If the coordinates of A, B and D are (10, -6), (2, -6) and (4, -2) respectively, find the co-ordinates of C.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 19

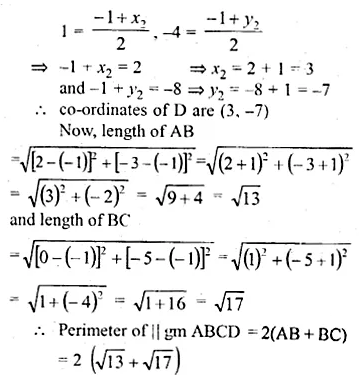

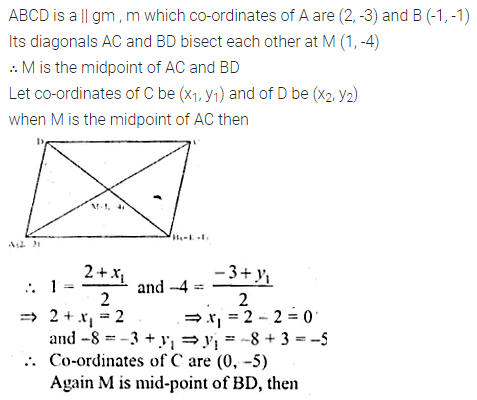

Question 16.
ABCD is a parallelogram whose vertices A and B have co-ordinates (2, -3) and (-1, -1) respectively. If the diagonals of the parallelogram meet at the point M(1, -4), find the co-ordinates of C and D. Hence, find the perimeter of the parallelogram. find the perimeter of the parallelogram.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 20
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 21

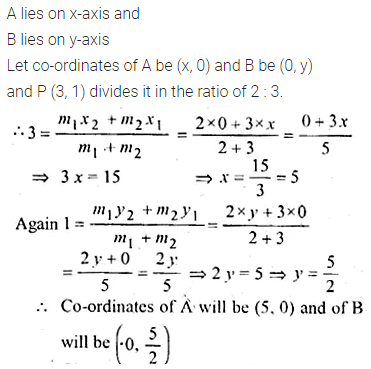

Question 17.
In the adjoining figure, P (3, 1) is the point on the line segment AB such that AP : PB = 2 : 3. Find the co-ordinates of A and B.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 22
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 23

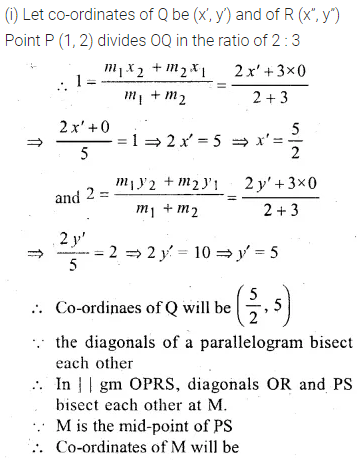

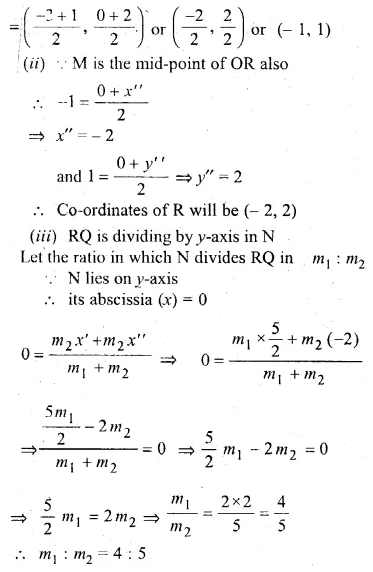

Question 18.
Given, O, (0, 0), P(1, 2), S(-3, 0) P divides OQ in the ratio of 2 : 3 and OPRS is a parallelogram.
Find : (i) the co-ordinates of Q.
(ii)the co-ordinates of R.
(iii) the ratio in which RQ is divided by y-axis.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 24
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 25
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 26

Question 19.
If A (5, -1), B (-3, -2) and C (-1, 8) are the vertices of a triangle ABC, find the length of the median through A and the co-ordinates of the centroid of triangle ABC.
Solution:
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 27
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 11 Section Formula Chapter Test 28
